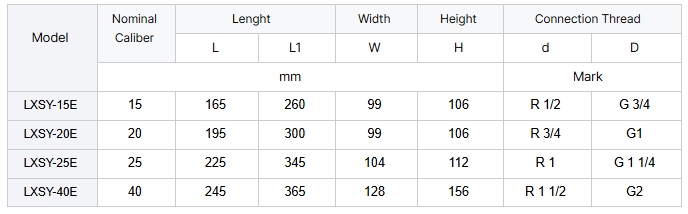

Technical parameters:
Main Features and Benefits：
1. The maximum allow error is 5% from the low zone including Q1 to the low zone that not include Q2; from the high zone including Q2 to the high zone including overload Q2, the maximum allowable error is 2%
2. The water meter is wet, and the wheel drives between the counting mechanism and the measuring mechanism; 3. The word wheel part adopts liquid seal, the pointer part keeps filling with water for a long time, and the mechanism is tight;
4. High measurement accuracy, small initial flow.
5. Max Permissible working pressure is 1.0MPa
6. The maximum permissible temperature of the measured liquid is 30 degrees Celsius
7. Pressure Loss is △P63
8. Up and down flow field sensitivity grade U10D5
9. Unmeasured reverse flow
water Meter Pulse Water Meter Pulse Output
