Main Features：
- Active, Reactive And Net Energy Measurement
- Single Or Bidirectional Energy Directions Configurable
- 4TE Wide
- Modbus Interface
- Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications
- MID & lEC & High Durability Test Certificates

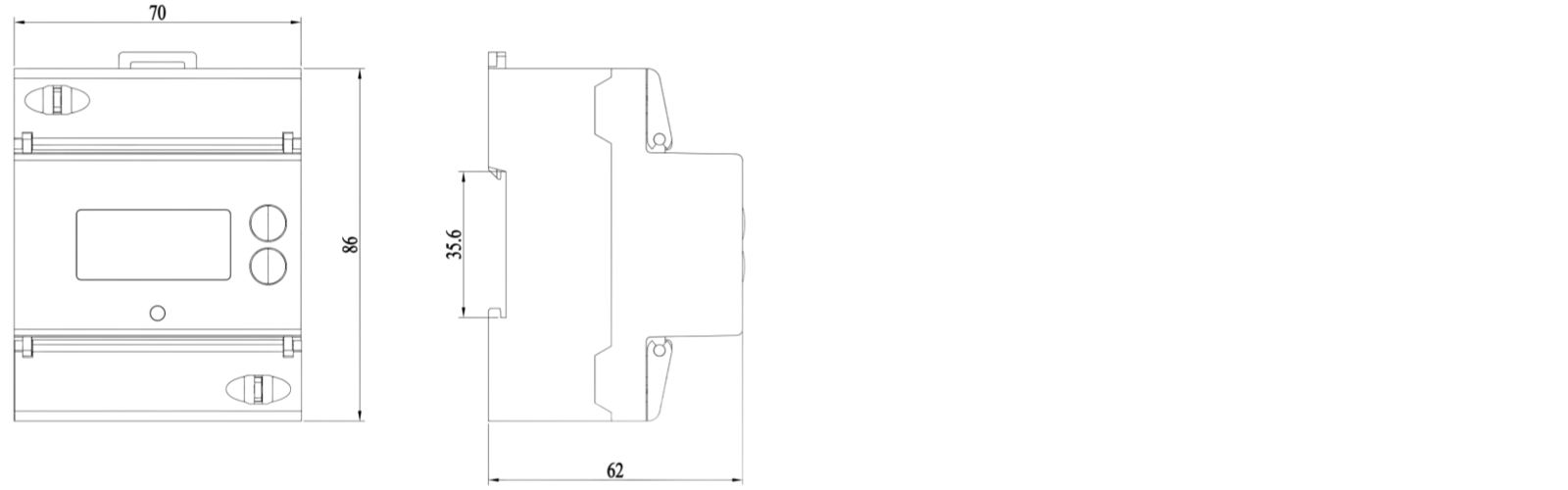

Product size：
Product Parameter：
Specification D3001-LM
Type | Three Phase Four Wire DIN Rail Meter |
Standards | EN 50470-1/3, IEC 62052-11:2020, IEC 62053-21/23:2020,
IEC 62052-31:2015 |
Voltage Rated voltage Un
Voltage range | 3x230/400V
80%Un 115%Un |
Current Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist | 0.25A
5A
65A
0.4%Ib |
Rated Frequency Fn | 50/60Hz |
Accuracy | Class B/1.0 for active; Class 2.0 for reactive |
Pulsating Indicator Pulsating (meter constant) | LED
1000imp/kWh; 1000imp/kvarh |
Environment Temperature range | Operation: -30 70℃
Storage: -40 85℃ |
Protection Degree | IP 51 in protective enclosure |
Insulation Class | II |
Typical Power Consumption Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib | ＜2W/10VA
＜4VA |
LCD Display | 7 digits with backlight supported |
Communication Interface | RS485 with screw type, maximum upto 38400bps |
Communication Protocol | Modbus protocol |
Weight Of Meter | About 0.26kg |
Dimension(LxWxD) | 86.0 x 70.0 x 62.0mm |
